TensorMesh — PyTorch-native finite element (FEM) library
A fast, differentiable, JIT-free, debugging-friendly finite element library for PyTorch.
- runnable examples
- 50+
- problem categories
- 11
- sparse-solver backends
- 6
- GPU speedup vs CPU FEM
- 10×
Developed at
Why TensorMesh
Built for the workflow where finite elements meet deep learning — without sacrificing the speed and accuracy you expect from a real FEM library.
GPU-Native & Differentiable
Built on PyTorch — move the entire FEM workflow to GPU with one line. Autograd flows seamlessly through assembly and solve for end-to-end differentiable PDE pipelines.
Tensorized Assembly
A fully tensorized Map-Reduce algorithm powered by TensorGalerkin fuses element-wise ops into monolithic GPU kernels — order-of-magnitude speedups over CPU-based FEM stacks.
JIT-Free & Debugging-Friendly
Eager execution with no compilation overhead. Dynamic meshes, adaptive refinement, and interactive workflows just work — no recompilation latency, no opaque traces.
Element & Mesh Support
Triangular, tetrahedral, pyramid, and prismatic elements. Automated mesh generation for common geometries with seamless Gmsh and VTK-HDF5 I/O.
Flexible Solvers
Powered by torch-sla — linear, nonlinear, and eigenvalue solvers across CPU/GPU backends with autograd, batched solves, and multi-GPU scaling.
Pythonic API
Custom weak forms in pure Python — no DSL, no form compiler. If you can write PyTorch, you can write FEM.
See it in action
Real outputs from the example gallery — meshes, fields, and animations rendered straight from TensorMesh.

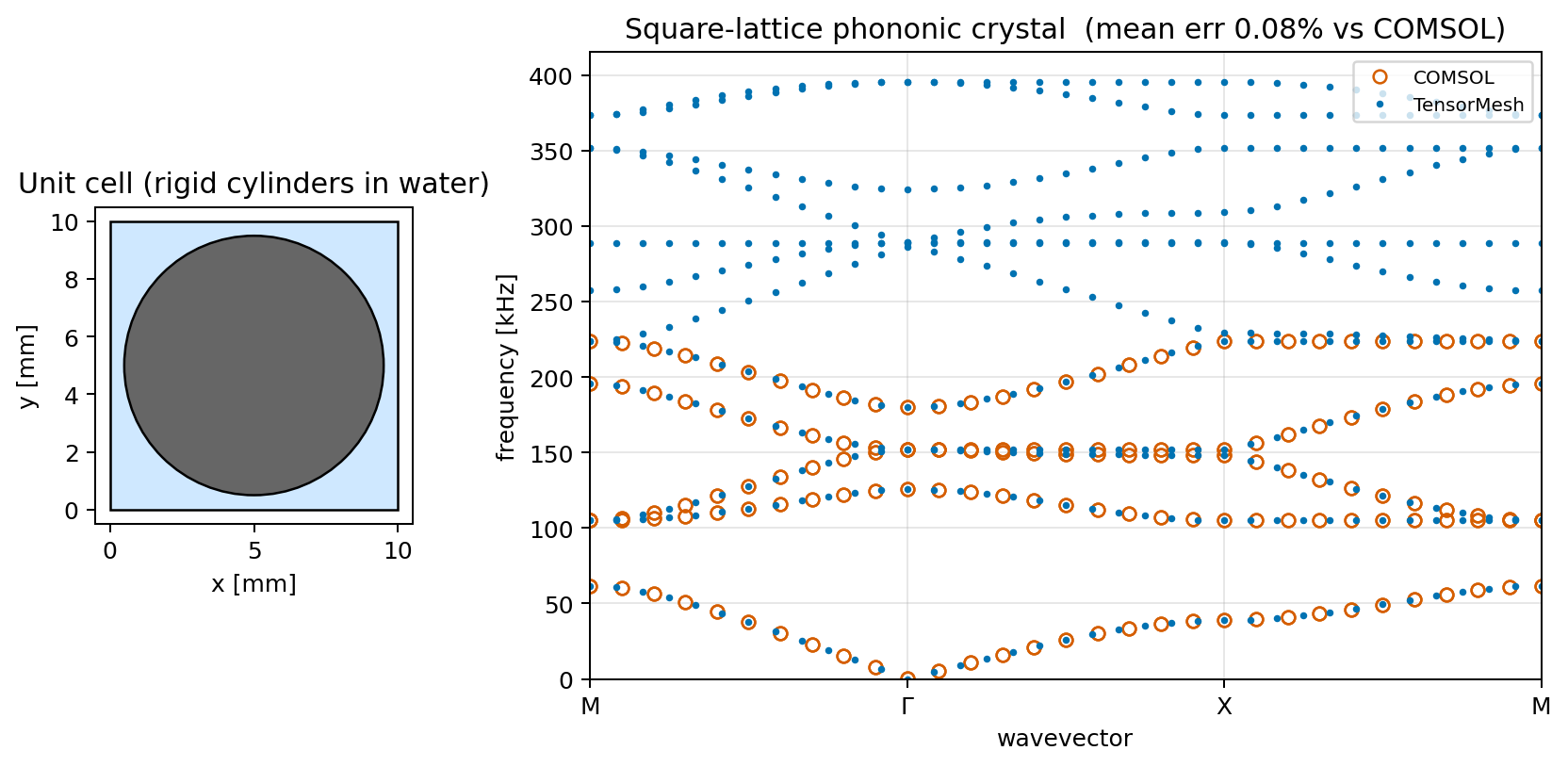

Wave Phononic crystals
Bloch–Floquet band structure; mean error 0.08% vs COMSOL.

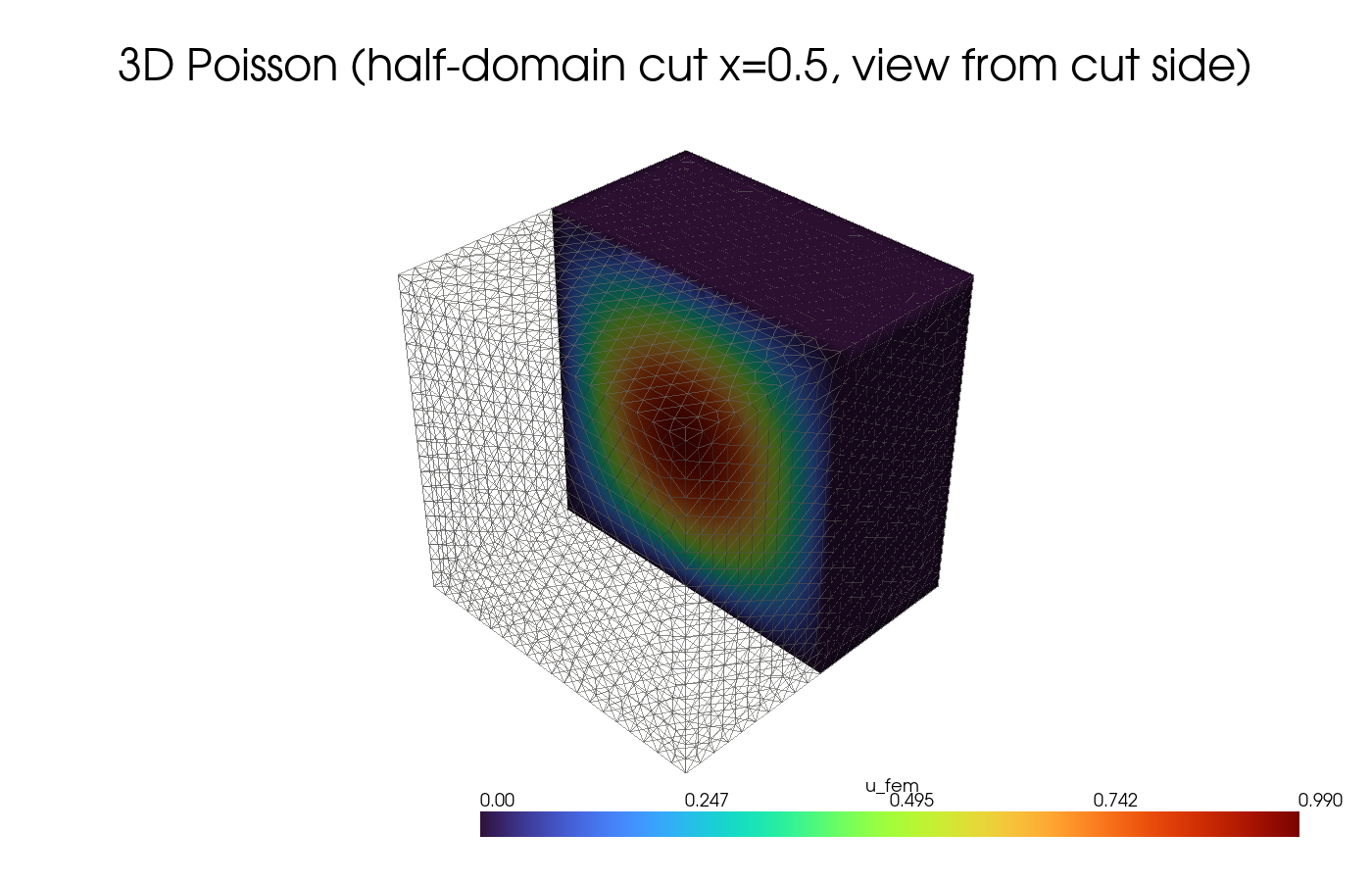

Poisson 3D Poisson
Tetrahedral mesh, cut view of the scalar field.
Diffusion
Animation

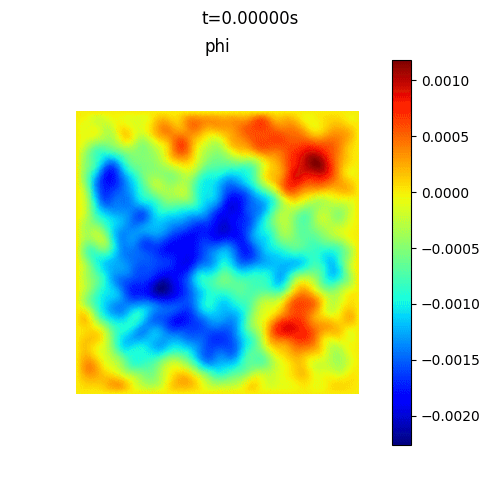

Allen–Cahn phase field
Nonlinear time evolution with Newton iteration per step.
Wave
Animation

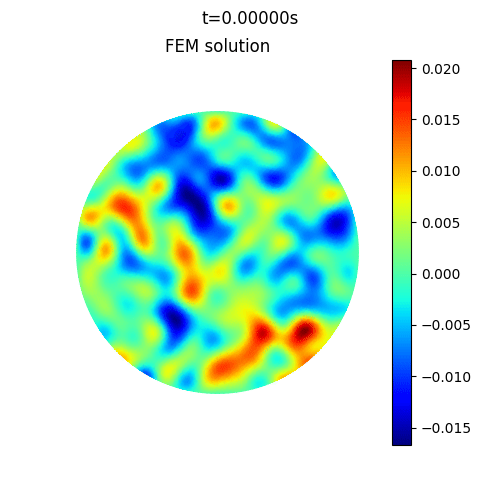

Wave equation
Explicit central-difference time integration.

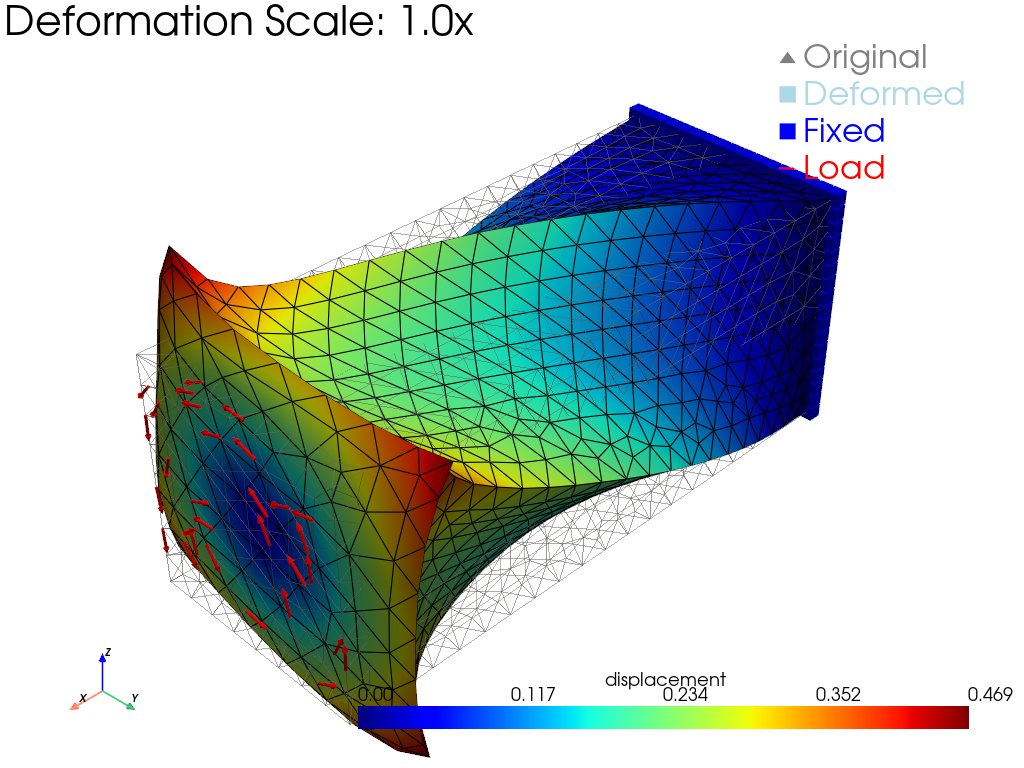

Solid Hyperelastic rubber
Large-deformation solid mechanics with a Newton solver.

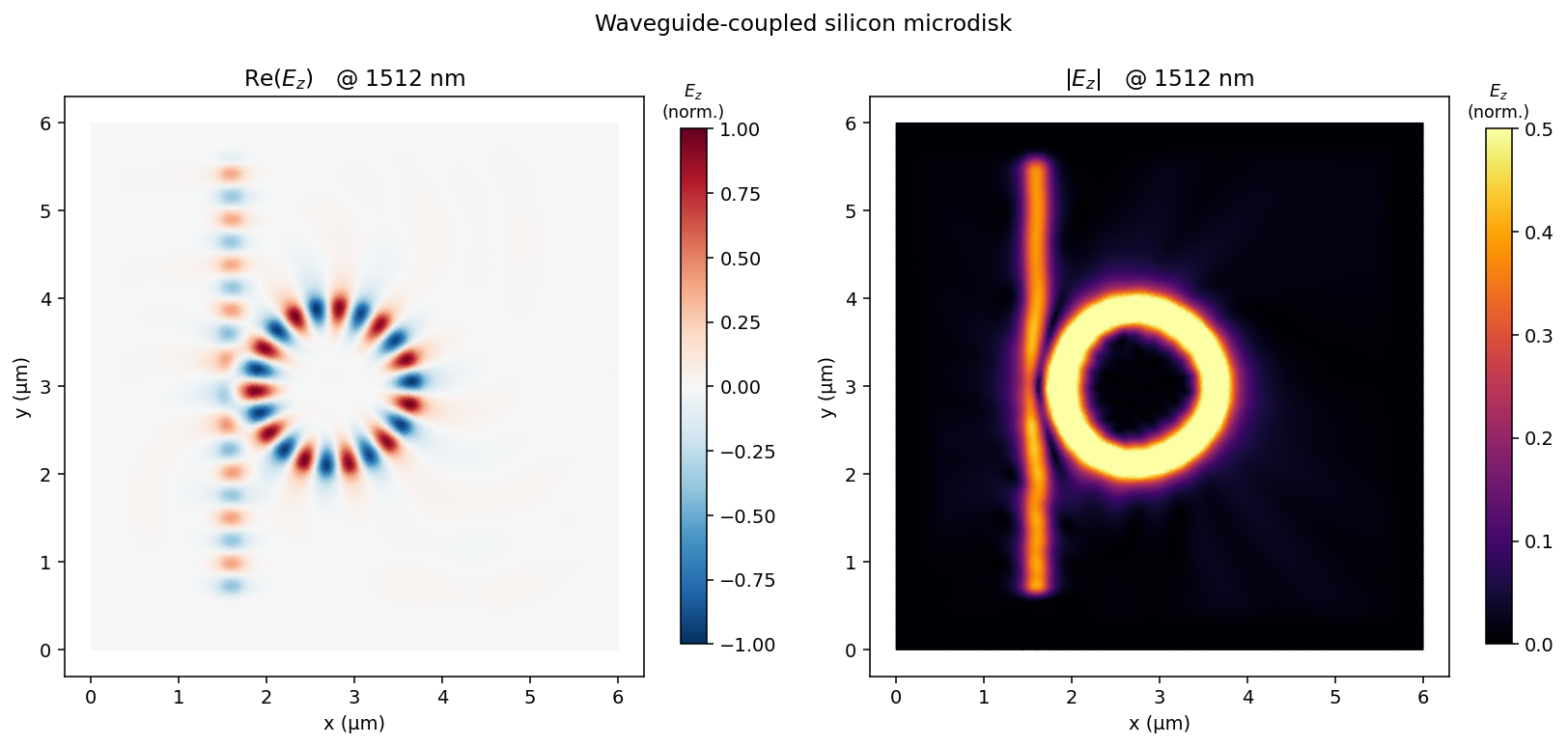

Wave Open-domain waves
Waveguide-coupled silicon microdisk with PML absorbing layers.

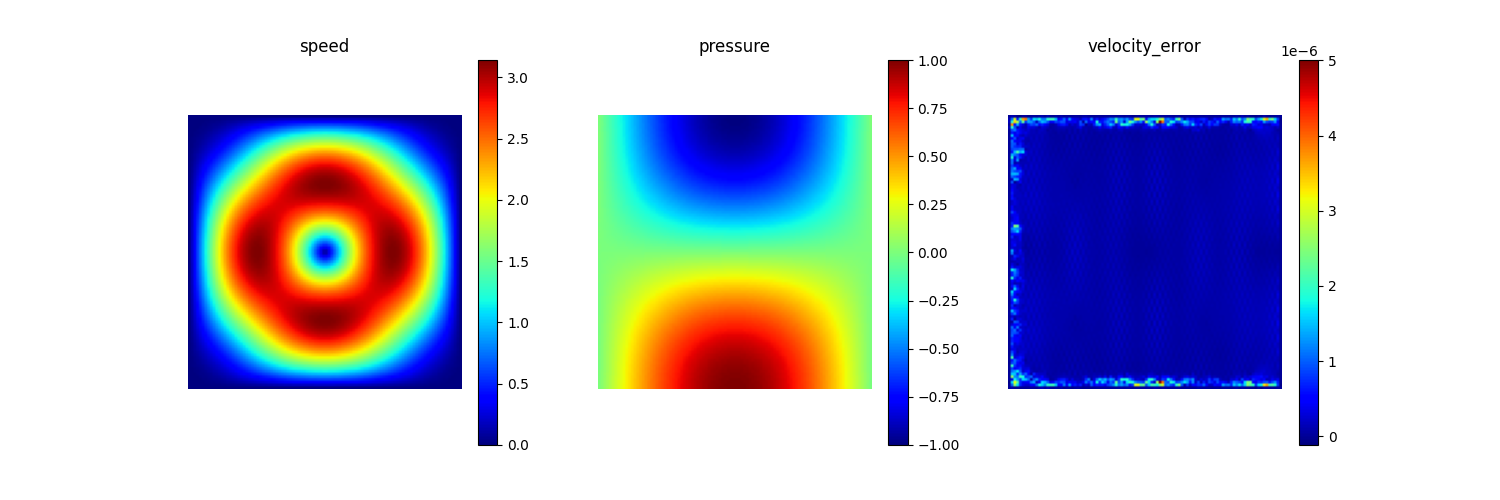

Fluid Taylor–Hood Stokes
Stabilization-free mixed P2–P1 assembly with optimal convergence.

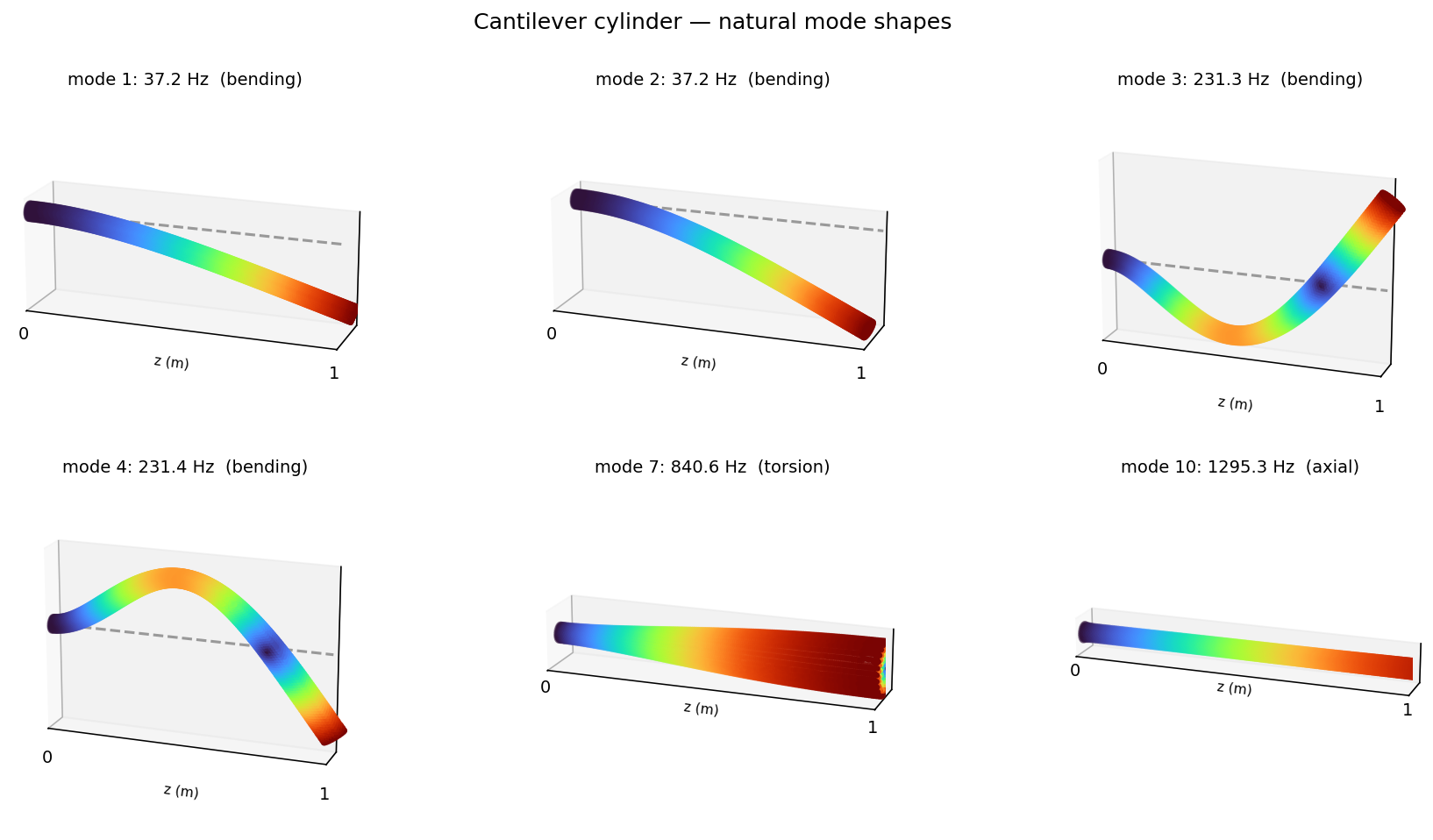

Solid Modal analysis
Natural frequencies and mode shapes of a cantilever cylinder.

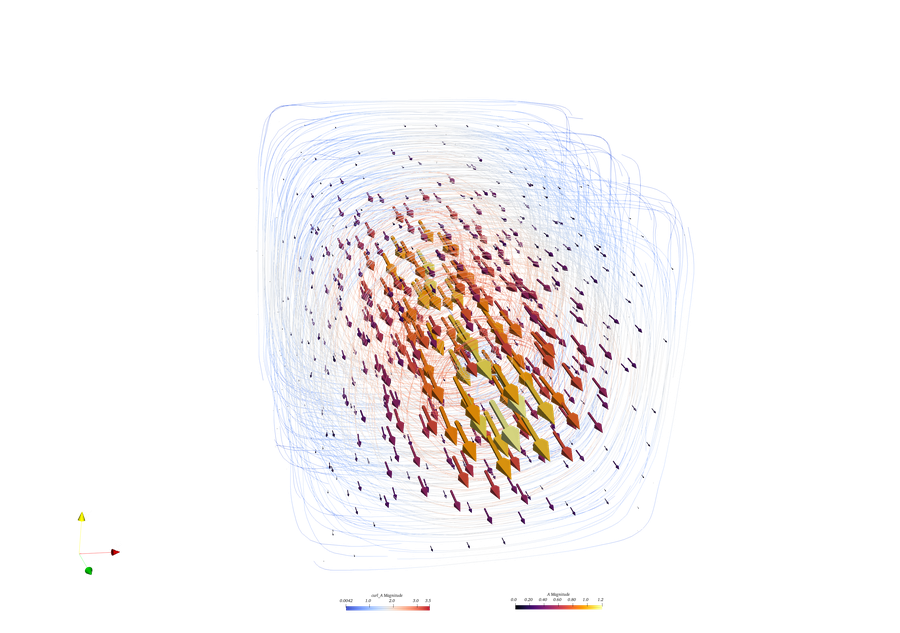

Maxwell Magnetostatics
3D magnetic field around a current-carrying wire (stabilized nodal curl–curl).
Inverse design
Animation

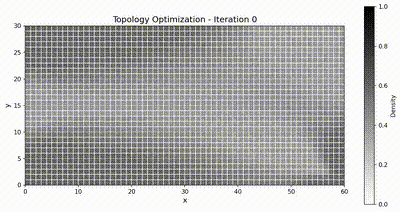

Topology optimization
Compliance minimization via the Optimality Criteria method.

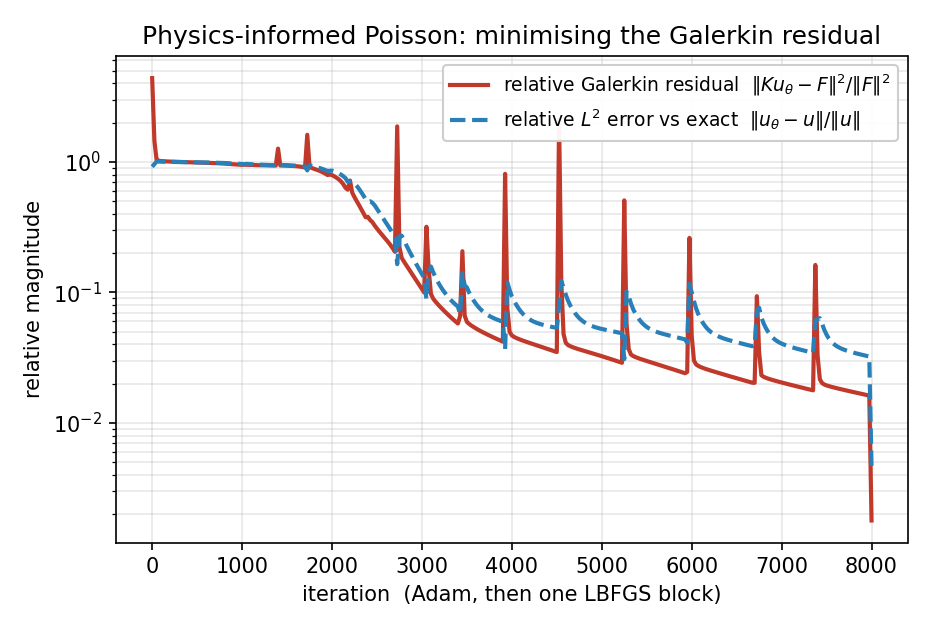

ML Physics-informed learning
A network trained to minimize the assembled Galerkin residual.

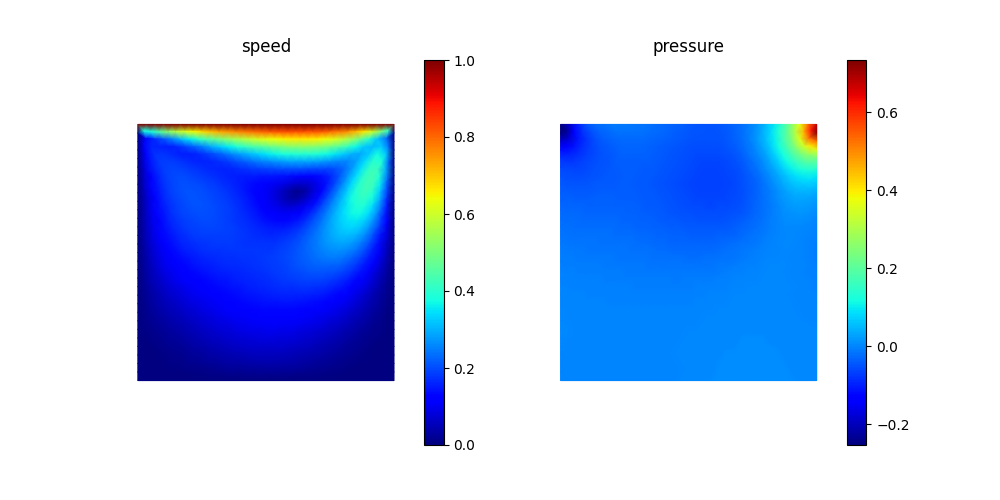

Fluid Lid-driven cavity
Incompressible Navier–Stokes with Taylor–Hood (P2–P1) mixed elements.
50+ runnable examples
Eleven problem categories — every script ships with the repo, and every rendered result lives in the docs.
Basics
Mesh viz, basis functions, element gallery.
ViewPoisson
2D/3D Poisson, batched RHS, h-adaptivity.
ViewDiffusion
Heat equation and Allen–Cahn phase field.
ViewWave
Time-domain wave, Helmholtz, phononic band structures, PML & ports.
ViewSolid
Hyperelasticity, contact, plasticity, geomechanics, modal analysis.
ViewFluid
Taylor–Hood Stokes, lid-driven cavity, cylinder flow, Rayleigh–Bénard, Taylor–Green.
ViewMagnetostatics
3D Maxwell — field around a wire via nodal curl–curl.
ViewInverse design
Coefficient ID and density-based topology optimization, via autograd.
ViewPhysics-informed
Train a network to minimize the assembled Galerkin residual.
ViewDataset
Batch mesh & field generation for ML training.
ViewDistributed
Multi-GPU assembly, mesh partitioning, graph coloring.

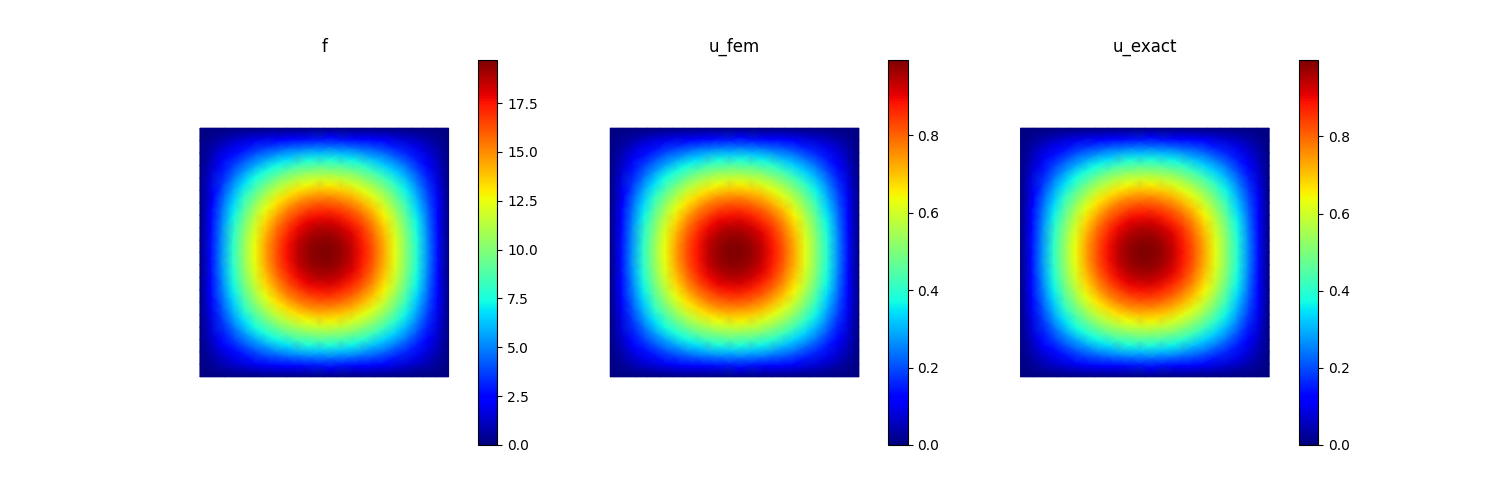

ViewFrom mesh to solution in pure Python
A complete Poisson solver — no DSL, no JIT, no surprises. Just PyTorch autograd flowing through every step.
import math
import torch
from tensormesh import ElementAssembler, NodeAssembler, Mesh, Condenser
# 1. Triangular mesh of the unit square.
mesh = Mesh.gen_rectangle(chara_length=0.05)
# 2. Stiffness weak form: a(u, v) = ∫ ∇u · ∇v dΩ
class LaplaceAssembler(ElementAssembler):
def forward(self, gradu, gradv):
return gradu @ gradv
# 3. Load weak form: l(v) = ∫ f v dΩ
class SourceAssembler(NodeAssembler):
def forward(self, v, f):
return f * v
# 4. Source term, evaluated at every mesh node.
x, y = mesh.points[:, 0], mesh.points[:, 1]
f_vals = 2 * math.pi**2 * torch.sin(math.pi * x) * torch.sin(math.pi * y)
# 5. Assemble.
K = LaplaceAssembler.from_mesh(mesh)()
b = SourceAssembler.from_mesh(mesh)(point_data={"f": f_vals})
# 6. Apply Dirichlet BCs via static condensation, then solve.
condenser = Condenser(mesh.boundary_mask)
K_, b_ = condenser(K, b)
u = condenser.recover(K_.solve(b_, verbose=True))
[torch-sla] solve: n=431, nnz=2859, dtype=float64, device=cpu, symmetric=True, spd=False, backend=scipy, method=lu
L2 error: 3.135e-03
The same script runs unchanged on GPU with
mesh = mesh.cuda(), and
becomes differentiable with
mesh.points.requires_grad_(True).
Speed without compromises
Benchmarked against FEniCS, Firedrake, MFEM, scikit-fem, JAX-FEM, and torch-fem on 3D Poisson, linear elasticity, and topology optimization.

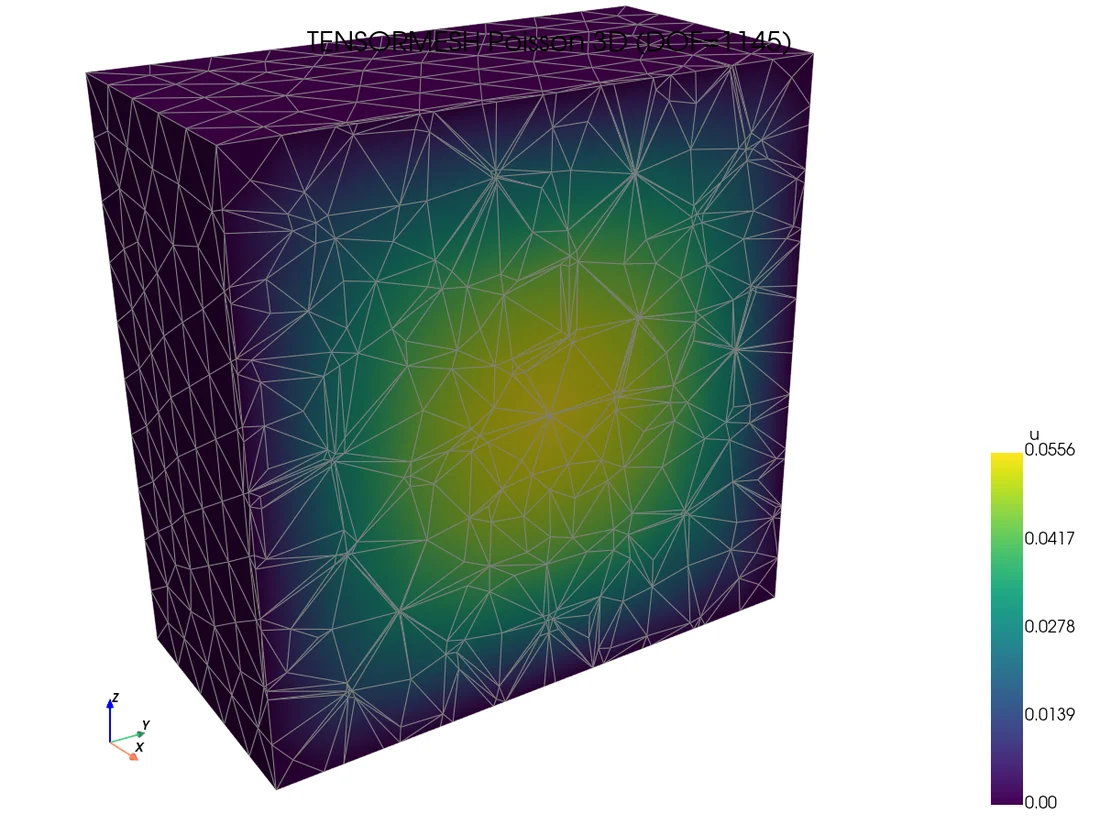

Solved field

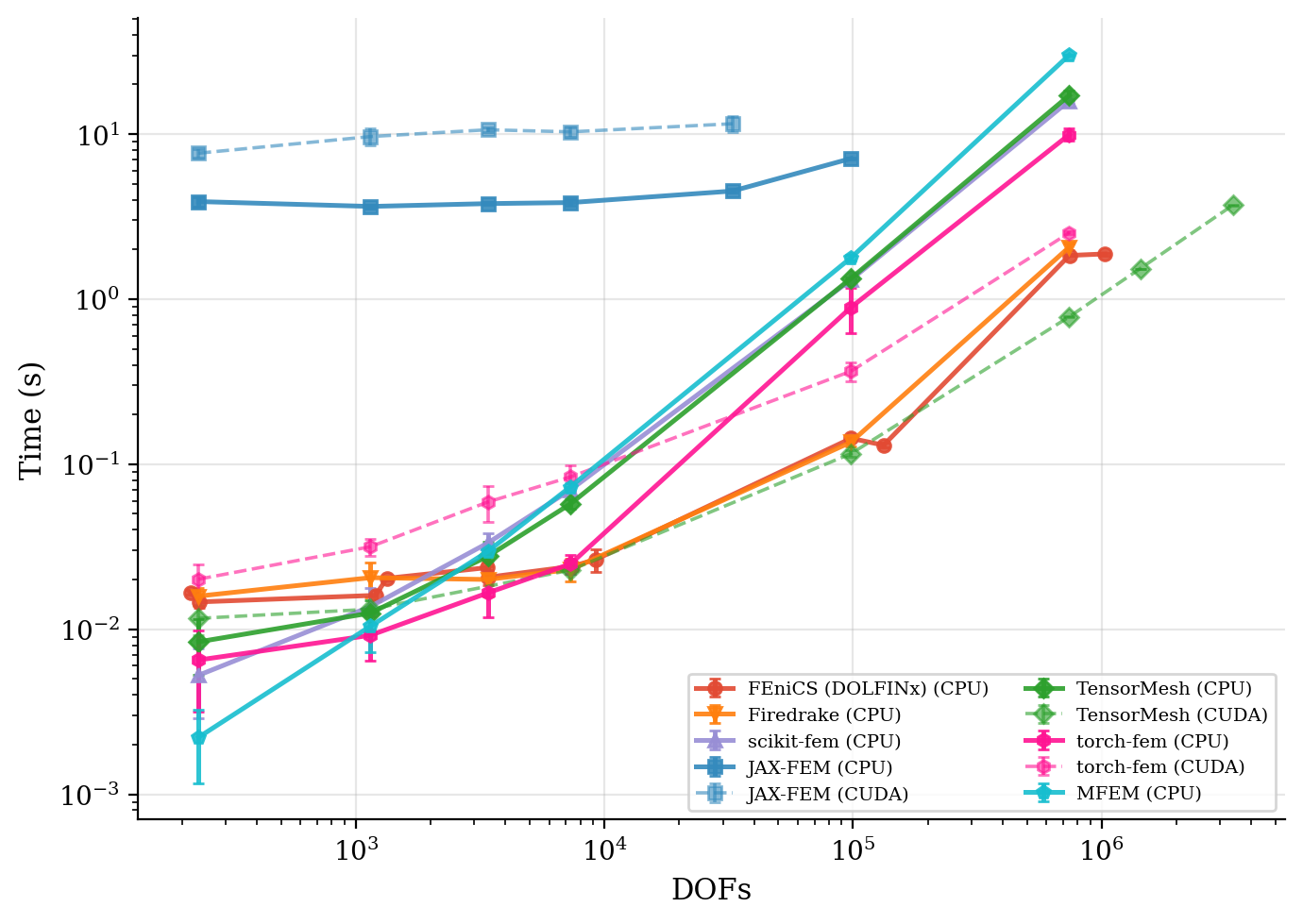

3D Poisson — total time vs DOFs
Left: the solved field on the tetrahedral benchmark mesh. Right: wall-clock time for every framework, CPU and CUDA — TensorMesh (CUDA) scales linearly past 10⁶ DOFs.
Solved field

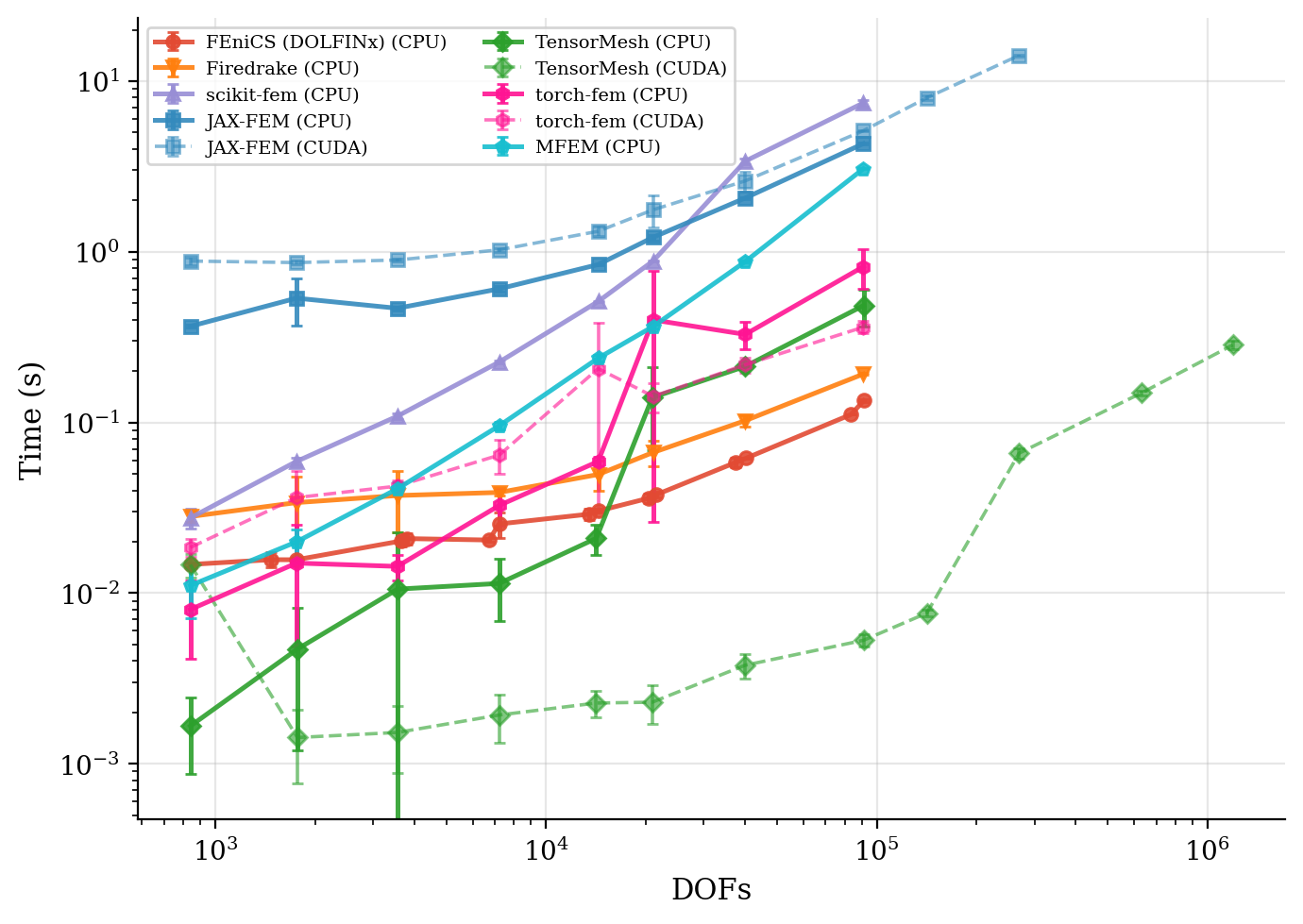

3D Linear elasticity — total time vs DOFs
Left: displacement magnitude under surface traction with fixed supports. Right: the same timing comparison on this vector-valued problem — CUDA backends widen the lead on larger meshes.
